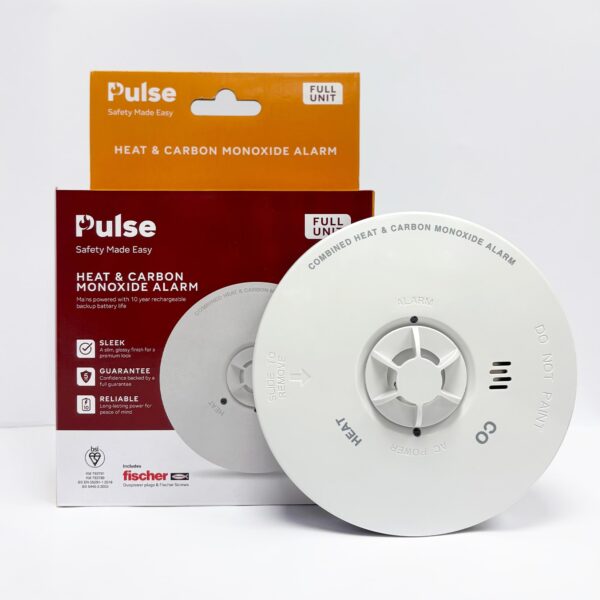

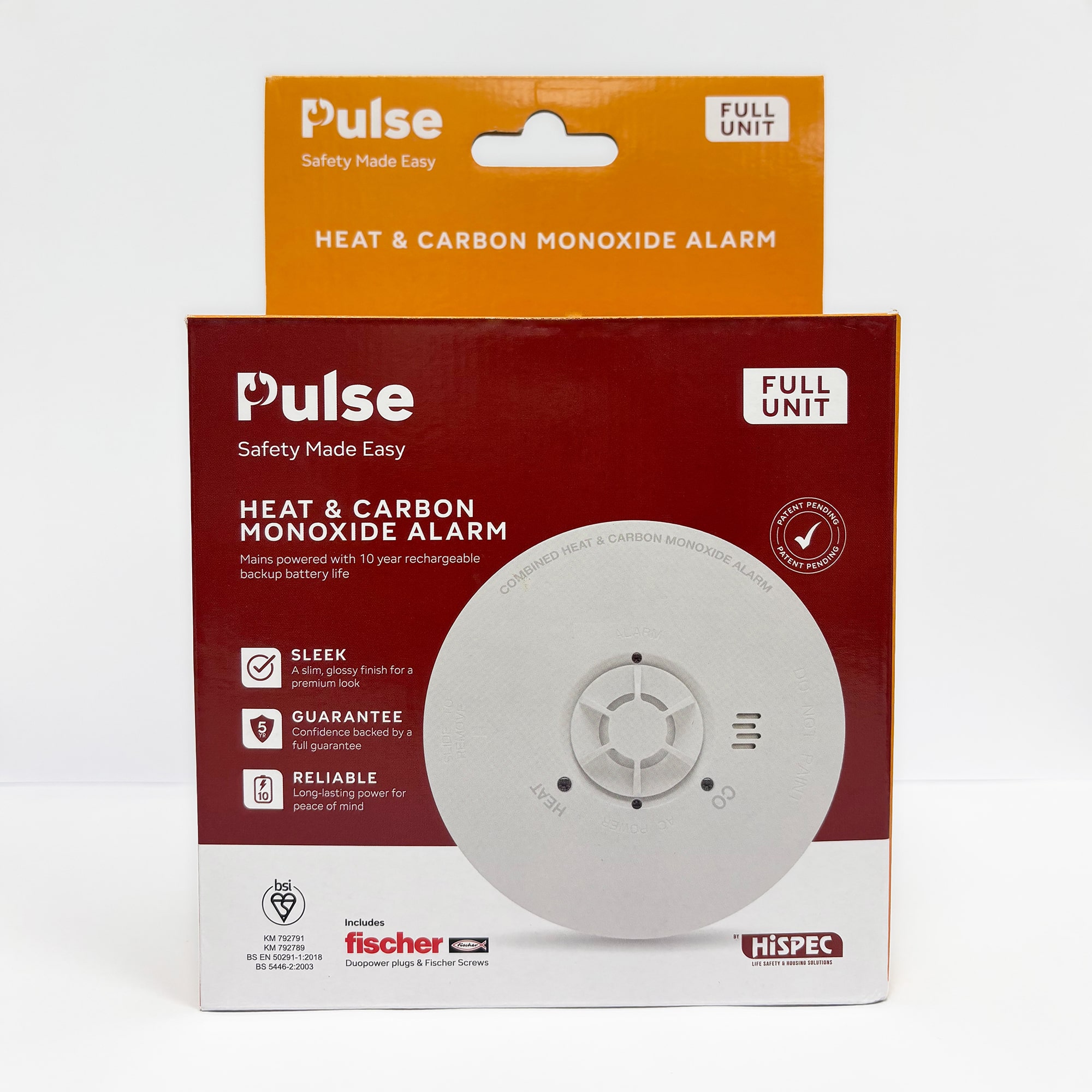

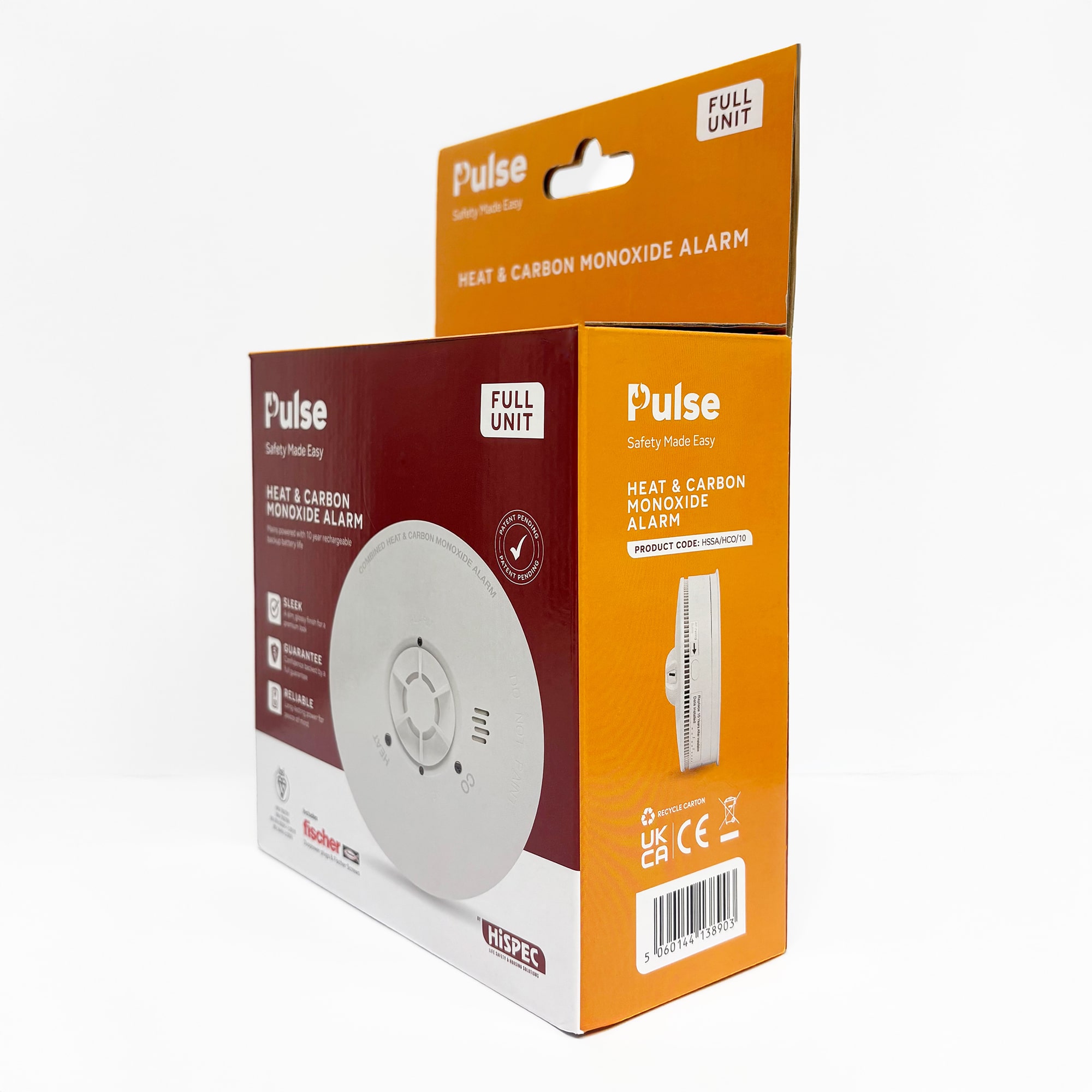

PULSE Mains Heat & Carbon Monoxide Alarm W/ 10 Year Lithium Battery Backup
The HSSA/HCO/10 is a 230V-powered heat and carbon monoxide alarm equipped with a 10-year rechargeable lithium battery for backup. Featuring a highly accurate sensor, this alarm has undergone rigorous testing throughout its production to minimize false activations, and it has been finely calibrated to ensure optimal fire safety performance.
Description
The HSSA/HCO/10 is a 230V-powered heat and carbon monoxide alarm equipped with a 10-year rechargeable lithium battery for backup. Featuring a highly accurate sensor, this alarm has undergone rigorous testing throughout its production to minimize false activations, and it has been finely calibrated to ensure optimal fire safety performance.
Specifications
| Grade of Alarm | D1 |
|---|---|
| Power Source | |
| Approved/Manufactured To | BS 5446-2:2003 and BS EN 50291-1:2018 |
| Designed For Installation To | BS5839-6:2019 and BS EN 50292:2023 |
| CO Alarm Activation Threshold | 50ppm (60-90mins), 100ppm (10-40mins), 300ppm (<3 mins) |
| Alarm Sound Level | |
| Ambient Op Temp | |
| Ambient Operating Humidity | 10% to 90% |
| Power Consumption (In Alarm) | ≤40mA |
| Power Consumption (Standby) | ≤10μA |
| Min/Max Cable CSA | 0.75mm² to 1.5mm² |
| LED Indicator Function | Green = Mains Power, Red = Battery/Fault Status |
| Warranty | 5 years |
| Max Interconnected Units | 20 |
| Max Hardwire Interconnect Distance | 150m |
| Max RF Connected Units | 20 |
| Max RF Distance | Open Area 80m, Enclosed Area 30m |
| Backup Battery Life (No Mains) | 30 days |
| Storage Temperature | -10 to 50°C |
| Storage Humidity | 0 to 90% (non-condensing) |
