SKU: HSLED-RETROFITGT

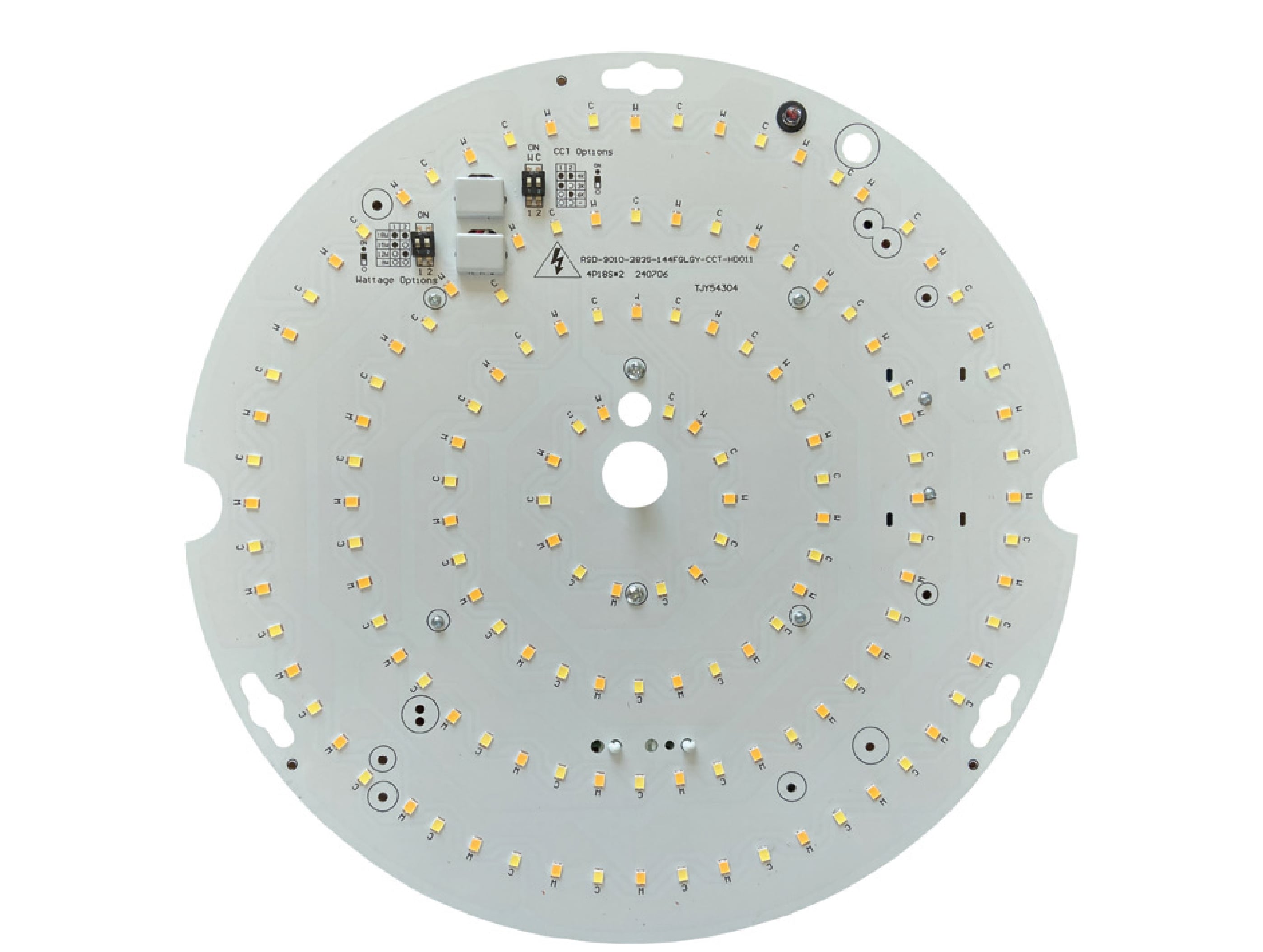

Colombia SWiTCH LED Retrofit Circular Gear Tray

Login as a trade user to see price

The Colombia SWiTCH LED Retrofit Circular Gear Tray is a versatile and efficient lighting solution, designed for seamless retrofitting of traditional circular bulkhead fittings. Equipped with an energy-saving LED module, it delivers bright, uniform illumination while minimizing energy usage and maintenance expenses.

Category:
SHARE

Description

The Colombia SWiTCH LED Retrofit Circular Gear Tray is a high-performance LED lighting solution designed for easy retrofitting of traditional circular bulkhead fittings. Featuring an energy-efficient LED module, this gear tray provides bright, uniform illumination while significantly reducing energy consumption and maintenance costs.

  • Wattage (9W, 15W, 18W, 22W):
    The gear tray is available in multiple wattage options, allowing users to choose the level that best suits their lighting needs, from energy-saving 9W to high-output 22W models.

  • Voltage (220-240V):
    Designed for compatibility with standard mains voltage, ensuring easy installation and reliable performance across various applications.

  • Lumen Output (900lm / 1500lm / 1800lm / 2200lm):
    Provides a range of brightness levels, delivering powerful illumination suitable for different spaces while maintaining energy efficiency.

  • Lumen Efficiency (100lm/W):
    High lumen efficiency optimal brightness with lower energy consumption, reducing electricity costs while maintaining excellent light output.

  • CCT (3000K / 4000K / 6000K):
    Features three adjustable colour temperature settings, allowing users to select between warm white (3000K), neutral white (4000K), and cool white (6000K) to suit different environments and preferences.

  • CRI (≥80):
    A high Color Rendering Index (CRI) ensures that colours appear more natural and vibrant under the light, improving visibility and aesthetics in various applications.

  • Rated Life (30,000 hours):
    Long lifespan reduces the need for frequent replacements, offering extended durability and lower maintenance costs over time.

  • Ambient Operating Temperature (-5°C to 25°C):
    Engineered to perform efficiently within a wide temperature range, making it suitable for various indoor and sheltered outdoor environments.

  • IK Rating (IK10 – High Impact Resistance):
    Built to withstand high impact, ensuring durability and protection against accidental damage in demanding environments.

  • Weight (0.176kg):
    Light-weight design allows for easy handling and installation, making it a convenient retrofit solution for existing bulkhead fittings.

Specifications

Wattage

9w, 15w, 18w, 22w

Voltage

220-240v

Lumen Output

900lm/1500lm/1800lm/2200lm

Lumens Per Watt

100lm

CCTk

3000k/4000k/6000k

CRI/Ra

>80

Rated Life

30,000hrs

Ambient Op. Temp

-5°C to 25°C

IK Rating

IK10

Weight

0.176kg
